Home > Ore dressing machine > Shaking table
Processing ability: 10–60 t/h
Feeding size: 0.15–2 mm
Feeding thickness: 15–30%
Applied material: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc
Chat LineGet a QuoteHigh enrichment ratio and good separation efficiency

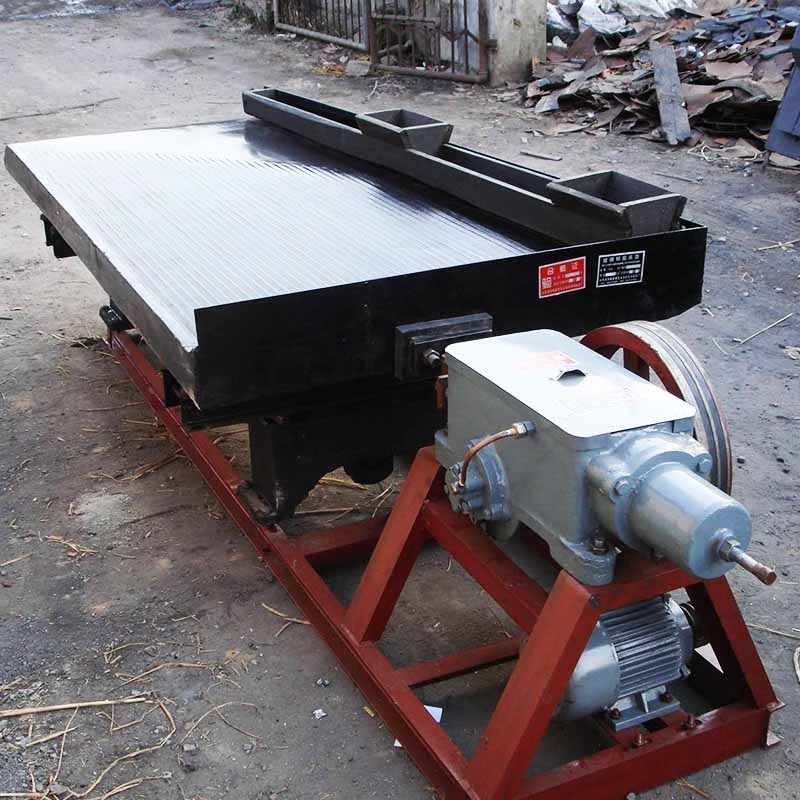

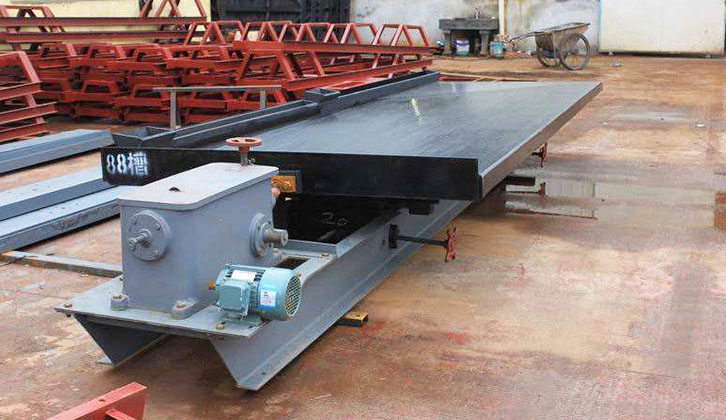

6-S shaking table is one of the main equipment of gravity concentration, it widely applies in the classification of tungsten, tin, tantalum, niobium and other rare metals and precious metals ore. Can also be used for classification iron, manganese ore and coal. When dealing with tungsten, tin ore, the table effective recycling granularity scope is 2-0.02 mm.
Beneficiation process is in an inclined bed bed to strip on the surface (Figure 1), particle swarm from the bed surface angle of the feeder trough to send people, at the same time by giving water supply lateral flushing water, and mineral particles in gravity, transverse flow momentum, the bed surface to make reciprocating asymmetry caused by the movement of inertia and friction under the action of force, gravity and the granularity stratification, and along the bed surface longitudinal motion and transverse motion along the inclined surface of bed. Because of this, different proportion and granularity mineral grains along the direction of movement of the respective gradually from A side to B side fan-shaped shed, different area from the concentrate and tailings discharge end side, finally is divided to concentrate, middlings and tailings.
According to the mine in different position, shaking table can be divided into right and left shaking table two forms. The right table feed position for shaking organizations on the right, the left table to mine position on the left.
6-S table has high rich ore ratio, high classification efficiency, safeguards easily, easy to adjust stroke. When change cross fall and stroke can still maintain the surface of bed movement balance, the spring is arranged in the box body, compact structure, and can obtain the final ore concentrate and the final tailings.
1. Size: 4520 mm long: Feeding end 1850 mm wide; The discharging end width of 1546 mm.
2. 8-36 mm, stroke.
3. A 245 - 380 times.
4. Feed size: 0.02-2 mm.
5. The feed concentration: 25-30%.
6. Processing capacity: 15-108T.
7. The transverse slope adjustment range: 0-10 ° .
8. Water consumption: 19-75 kg / min..
9. A motor 1.1 kW; Speed: 1410 rpm.
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
| Driving part Width (mm) |
1855 | 1855 | 1855 | |
| Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
| Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
| Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke (mm) |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
