Home > Ore dressing machine > Rod mill
Processing ability: 3–120 t/h
Feeding size: <=25–<=50 mm
Discharging size: 0.833–0.147 mm
Applied material: quartz, iron ore, copper ore, gold, construction waste, glass, cement clinker, etc
Chat LineGet a QuoteHigh efficiency, large capacity, uniform particle size

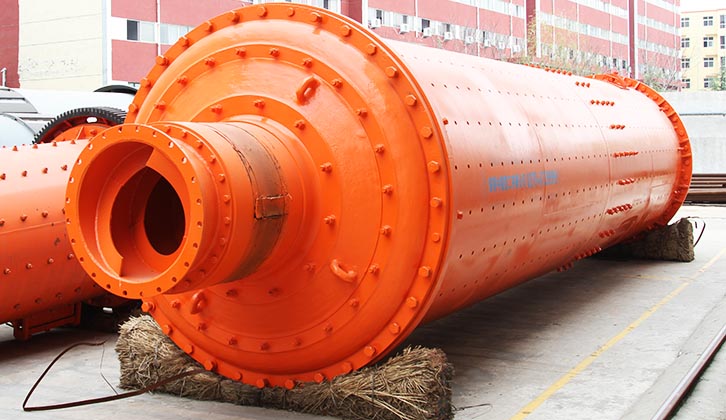

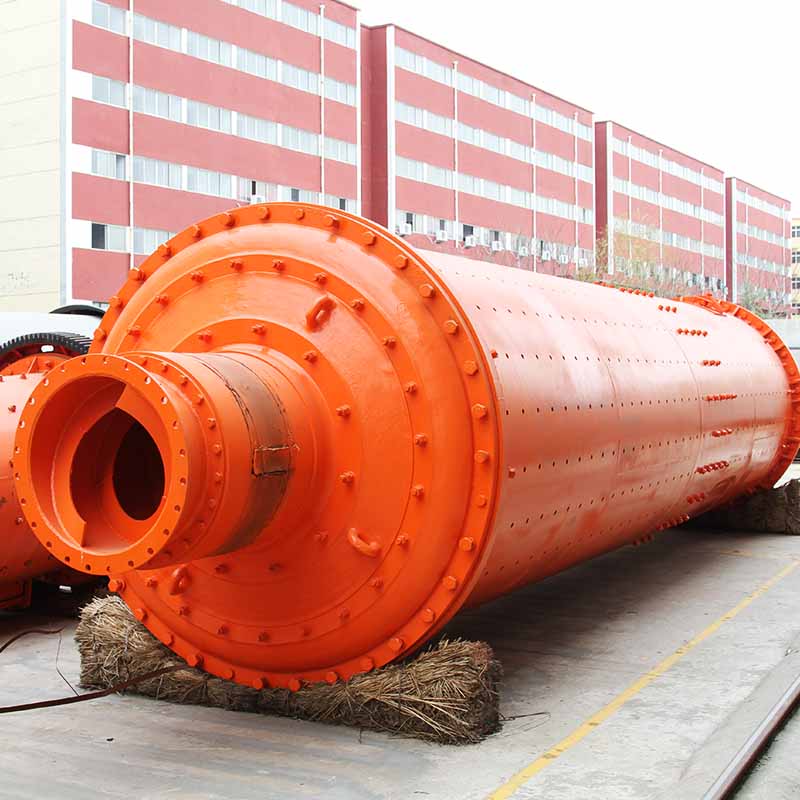

The rod mill with steel rod as the grinding medium, the rod diameter is 50 - 100mm, 25 - 50mm short length ratio of simplified, simplified length is 1.5 - 2 times the diameter of the cylinder shape, only for the cylindrical structure and cylindrical ball mill, rod mill grinding granularity, over grinding less and have a similar sieving effect of steel bar, product size uniform, rod mill is mainly used in the factory to do a re grinding, also do three crushing the last period of open operation.
1. The structure is reasonable and the production capacity is large. The ratio of the length and diameter of the rod mill cylinder is generally 1.5-2.0, and the inner surface of the liner on the end cap is a vertical plane.
2. Crushing lighter, more uniform particle size. The commonly used rod mill diameter 50-100mm steel bars as grinding medium, rod mill with overflow type, open type discharging, discharging end of the hollow shaft strength diameter than the same size ball mill is generally larger.
3. Wide application range, low production cost. When the tungsten tin and other rare metal ore gravity separation and magnetic separation, rod mill can prevent the occurrence of crushing; in the two stage grinding process, usually as the first rod mill grinding equipment; in dealing with soft or hard ore, available rod mill instead of short head cone crusher for crushing, not only has simple configuration, low cost, and can make the dust in the workshop is simplified.
| Model |
Shell Specifications （mm）
|
Shell rotation speed （r/min） |
Feeding size (mm) |
Discharging size (mm) |
Processing capacity (t/h) |
Power (kw) |
Total weight (t) |
|
| Diameter | Length | |||||||
| MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 |
5.9 |
| MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6.7 |
| MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 13.9 |
| MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 19.8 |
| MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 34.9 |
| MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 46.5 |
| MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 48.7 |
| MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 59.7 |
| MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 92.5 |
| MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 95 |
| MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 149 |
