Home > Stone crushing machine > Hammer crusher

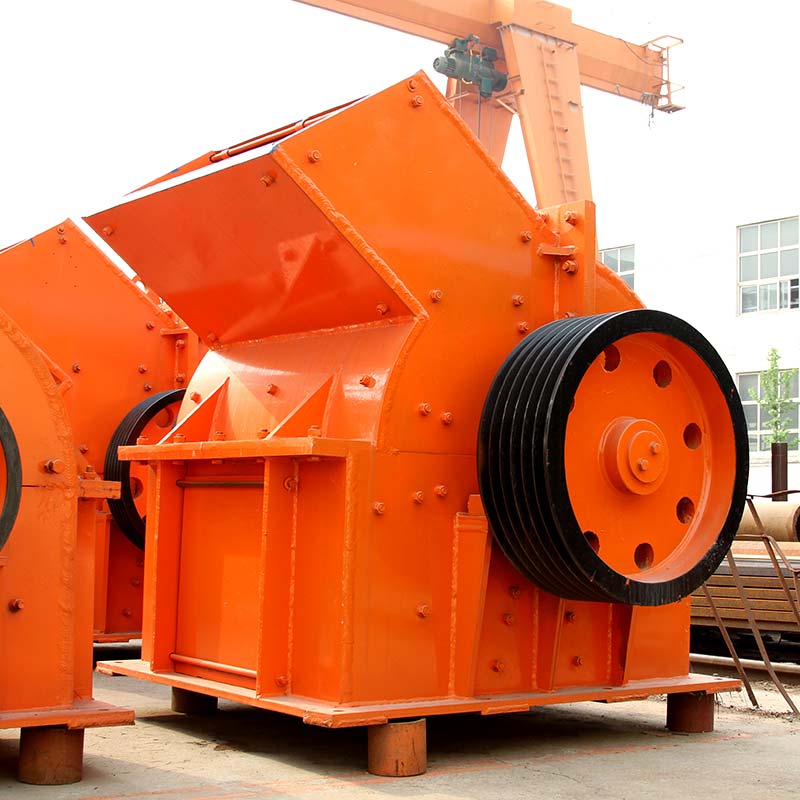

Processing ability: 5–150 t/h
Inlet size: 1020×750–1850×1400 mm
Feeding size: ≤600–≤1200 mm
Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, etc
Chat LineGet a QuoteUse and application
1 .Hammer crushers are applied to the industries like railway, road, cement, building material, refractory, ceramic and chemical industry to carry out middle breaking and fine breaking to the raw materials.
2. The machine mainly applies to crush limestone, tegular rock, dolomite bole, ground phosphate rock, gypsum, glass, manganese mine, refractory material, coke and others. It is also available to crush whitewashing stones, water stone, building sand, fine coke and with different fineness together with grate bar according to consumers' need.
In addition, hammer crushers can not only be used for crushing production lines, sand production lines, but also in the mineral processing line instead of cone crusher.
Hammer crusher’s structure: crusher box, rotor, hammer head, counterattack plate, sieve and other components.
1 .The machine case is welded by medium carbon steel plate with many reinforcing steel bars. It is divided into two parts: case cover and base along rotor axis centerline.
2. All the wallboards and impact plates in the case are made of 30# steel plate.
3. Hammer head is forged with 55一60# type steel and the hardness can reach HRC500 or above after heating treatment.
4. Generally, the crusher (size less than 600x400) is driven by the V-belt. Users also can adopt plate belt or direct link according to requirements.
1. The structure of the hammer crusher’s case is easy to be disassembled.
2 .Using 30# steel as wallboard’s texture is mainly in favor of extending the use life of case.
3., Hammer head with new technology casting can attach wear-resistant and impact resistance effect..
4. The sealed hammer crusher body solves the crushing plant dust pollution and body leakage problem.
Hammer crusher mainly by the impact energy to complete the broken material operations. When hammer crusher works, the motor drives the rotor for high-speed rotation, the material even into the crusher cavity. High-speed rotation of the hammer head shears and tears material until the material is broken, at the same time,the material itself through the gravity from high-speed rotation of the hammer to the frame body baffle, screen bar, larger than the sieve size of the material on the screen to continue to be hit and grinded by the hammer until be broken to the required material size of the final discharge through the sieve.
| Specification |
Capacity(m³/h) |
Motor Power (kw) |
| PCΦ400×300 |
3-10 |
4P 11KW |
| PCΦ600×400 |
6-22 | 4P 22KW |
| PCΦ800×600 |
10-40 | 6P 55KW |
| PCΦ1000×800 |
15-50 |
8P 75KW |
| PCΦ1000×1000 |
18-55 | 8P 90KW |
