Home > Ore dressing machine > Flotation machine
Processing ability: 0.2–16 m³/min
Impeller rotation speed: 191–400 r/min
Dimensions: 700×700×750–2200×2900×1400 mm
Applied material: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral.
Chat LineGet a QuoteInspiratory capacity, low power consumption

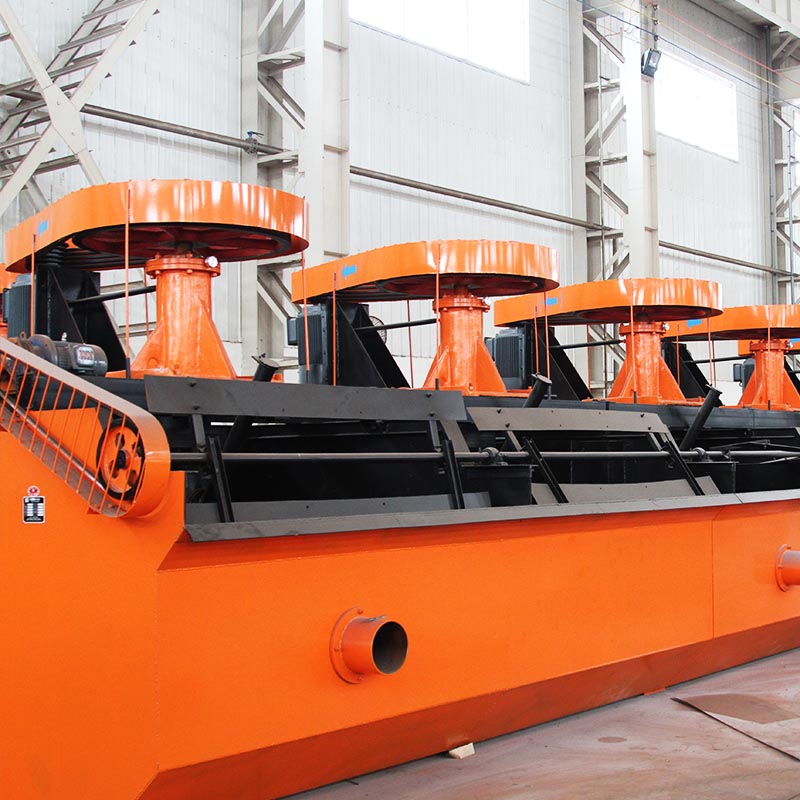

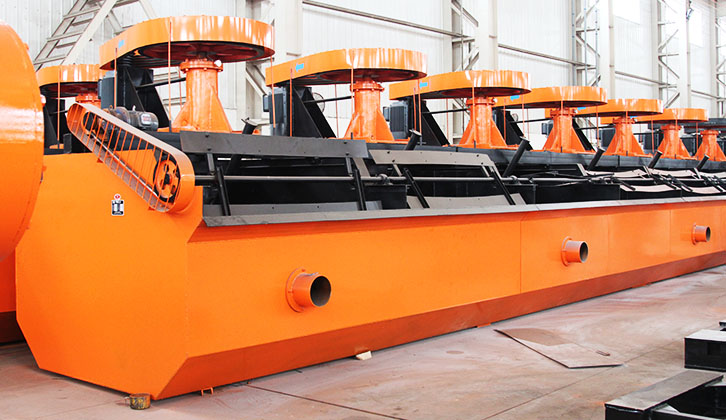

The flotation machine is mainly used for the separation of copper, zinc, lead, nickel, gold and other non-ferrous metals, can also be used for roughing and cleaning of ferrous metal and nonmetal. Flotation machine is driven by a motor V-belt drive impeller rotation, produces centrifugal force to form negative pressure, a suction sufficient air and slurry mixing, stirring a drug at the same time and pulp mixing, thinning foam, make mineral adhesive foam, float to the pulp surface and formation of mineralized bubbles, adjust the height of flashboard to control the liquid level and make the useful foam scraper scraping.
1. advanced structure, improve production capacity: impeller by closed double cutting vertebral body, mortar can produce strong circulation
2. large suction capacity, low power consumption: each slot has three functions of suction, suction, and flotation, horizontal configuration, self flotation circuit
3. the pulp circulation is reasonable, can reduce the coarse sand precipitation to the maximum extent
4. With pulp level control and electronic control device, easy to adjust
When the mine is grinding or after grinding, add water and necessary medicine produces the mine slurry after mixing, feed into the chute that begin to mix, add air into mine slurry to produce lots of bladder .The mine that not easily wet by water attaches the bladder and float to the surface of mine slurry together to produce the mineralized bladder floor .And the rest leaves in the mine slurry and discharges the mineralize bladder to reach the concentrating purpose.
1. The capacity and time limit of flotation machine depends on the maintenance and keeping every main assembly works normally, every part should be examined once every 3to 4months .In the first months of works, should be examined often.
2. Only the skilled worker can examine the machine.
3. In order to change the assembly in time, should store whole set of easily destroyed assembly .The quantity and time of use depends on the fact use.
4. Only the skilled worker can operate the machine.
5. To prevent the swag, adding the oil should have the filter .When the flotation machine works, the oil cover should be sealed.
6. Before staring, should contact with other every procedures.
7. Starting order: press strobe switch, and the start button.
8. After starting, forbid to touch the rotary part.
| Category | Specification Model |
Effective cubage （m³） |
Processing capacity （m³/min） |
Main shaft loam board | Dimensions (L×W×H) （m） |
Single trough Weight （t） |
|||
| Power （kw） |
Rotate speed （r/min） |
Rotate speed （r/min） |
Power （kw） |
||||||
| XJK type flotation machine |
XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 0.7×0.7×0.7 | 0.5 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 0.90×0.82×0.85 | 1.0 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1 | 1.4 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1.75×1.6×1.1 | 2.5 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2.2×2.2×1.2 | 3.6 | |
| SF type flotation machine |
SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 0.7×0.7×0.75 | 0.5 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.95 | 1.0 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.1 | 1.9 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1.75×1.6×1.15 | 2.6 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1.85×2.05×1.2 | 2.9 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.4 | 4.2 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.7 | 4.5 | |
| SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2.85×3.8×2 | 9.9 | |
| JJF type flotation machine |
JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1.4×1.4×1.1 | 1.7 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1.6×2.15×1.25 | 2.4 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.4 | 4.5 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.7 | 4.9 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2.85×3.8×1.7 | 8.0 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2.9×3.8×2.0 | 10.5 | |
