1.Integrated motor seat
2.Fewer labor force and down time
3.Easy to transport and install, especially for coal crushing underground

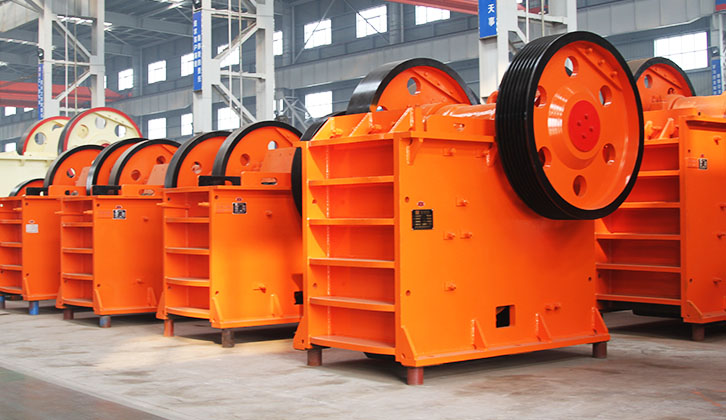

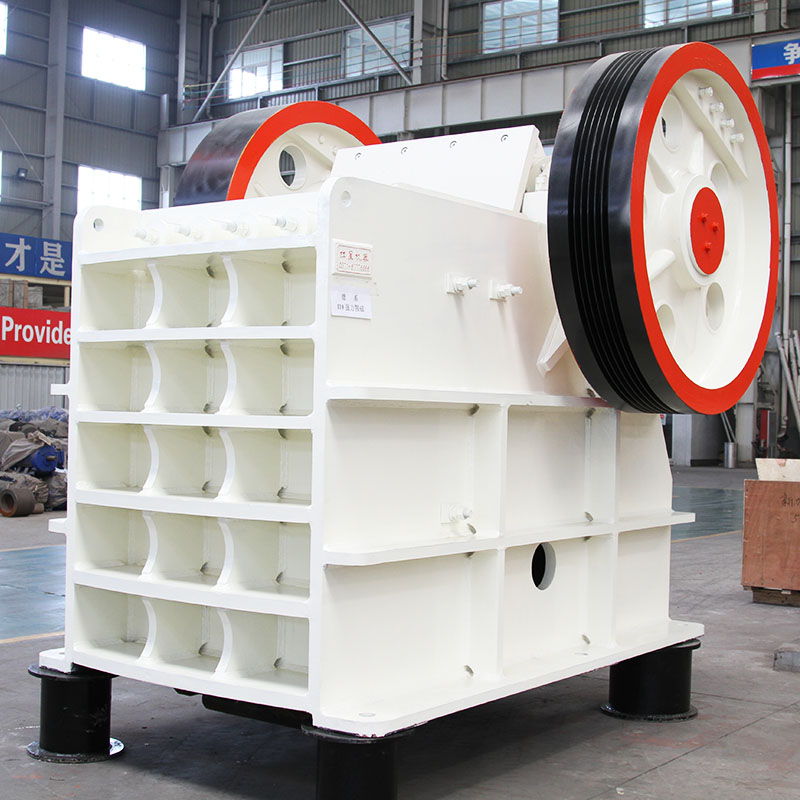

Chat LineGet a QuoteCJ series jaw crushers is a high performance jaw crusher introduced and developed by Henan Fote Heavy Machinery Co.，Ltd based on customer and market demand. Different from the
Traditional jaw crusher, this series of jaw crusher has been improved at movement parameters ,structural form and adjust method. CJ series jaw crusher has advantages of less land occupation，big crushing ratio, and smooth operation，easy to install，maintain and adjust. It is particularly suitable for fixed crushing plant and mobile crushing plant.
1. Bolted and disassemble frame
2. Optimized movement parameters
3. Enhanced bearing design
4. Wedge block discharge adjustment
5. Steel plate made toggle plate
6. Integrated motor seat
7. Integrated steel base
1.Stronger and more reliable structure, easy to transport and install , especially convenient when working underground.
The front plate, side plate and rare frame are connected by cylinder pins and fastened by bolts, which makes it a stronger and more reliable structure, also this type of structure has avoided the
accumulation of inner stress which always happen to a welded jaw crusher frame. This disassemble frame is easy to transport and install，especially convenient when working underground.
2.Bigger stroke and higher crushing ratio
The optimized movement parameters make the crushing take place when rock enters at the upper part of the crusher chamber; while at the lower part of the crusher chamber, it has a bigger stroke and higher crushing ratio.
3.Longer service life，fewer spare parts number
Longer service life has been guaranteed by adopting bigger bearings; in the mean time, the toggle bearings and frame bearings are with same model which reduces spare parts number.
4.Fewer labor force and down time compare to the traditional one
Wedge block discharge adjustment reduces labor force and down time compare to the traditional spacer plate adjustment method. Hydraulic cylinders can be installed which makes easier adjustment.
5.Better to protect crusher body and belt conveyor
The new designed toggle plate is made from high strength steel plate; it protects the crusher body when the crusher is overload. This light-weight toggle plate is easier to be replaced compare to the traditional heavy-weight casted toggle plate; moreover, this light-weight toggle plate does not damage the belt conveyor when it drops.
6.Easy installation , less used field area
The integrated motor seat design makes easier install and takes less land.
7.little effect on foundation
The crusher is seating on the steel base, while vibration absorbers have been applied between them in order to reduce the vibration to the foundation.
| Model |
Feed size L×W（mm） |
Max.Feeding size（mm） |
Range of discharging port（mm） |
Handling capacity(t/h) |
Power（kw） |
| CJ80 |
800×510 |
430 |
40~175 |
65~380 |
75 |
| CJ96 |
930×580 |
490 |
60~175 |
120~450 |
90 |
| CJ100 |
1000×760 |
640 |
70~200 |
150~540 |
110 |
| CJ110 |
1100×850 |
720 |
70~200 |
190~620 |
160 |
| CJ125 |
1250×950 |
800 |
100~250 |
290~840 |
160 |
| CJ145 |
1400×1100 |
930 |
125~275 |
400~1050 |
200 |
| CJ160 |
1600×1200 |
1000 |
125~275 |
520~1250 |
250 |
